# OMR DESIGNER

* Go to the OMR Templates in the test module and click on 'Create OMR Template' and choose 'OMR DESIGNER'

<figure><img src="https://1998472324-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyTrQq9oNUSgQZqrwy4qB%2Fuploads%2F77Fgk7GlNGNhB0VQ2Pak%2Fimage.png?alt=media&#x26;token=d8e53899-73bb-41ee-aef6-d07d4a2dc637" alt=""><figcaption></figcaption></figure>

* Enter the Name of your template and add your logo. You can adjust the positioning of the logo as per your choice.

<figure><img src="https://1998472324-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyTrQq9oNUSgQZqrwy4qB%2Fuploads%2FYpPnTwrDjmyeST9k7R9l%2Fimage.png?alt=media&#x26;token=28dd603f-4f8c-4d0a-b9a8-a9f4f4d4e2c9" alt=""><figcaption></figcaption></figure>

* You can also add any text you want to add by clicking on Add Text.

<figure><img src="https://1998472324-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyTrQq9oNUSgQZqrwy4qB%2Fuploads%2FcmBaOjSP4LeTPkg3H5BL%2Fimage.png?alt=media&#x26;token=295a86e3-e142-4ca7-aa51-de97bd99346e" alt=""><figcaption></figcaption></figure>

* Click on 'Roll Number', choose the roll number length you want, and click on 'ADD'. The roll number block can be placed as per requirement in the OMR.

<figure><img src="https://1998472324-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyTrQq9oNUSgQZqrwy4qB%2Fuploads%2Fb8NhuRsadewewIdnNPzt%2Fimage.png?alt=media&#x26;token=af0779d3-710d-4eaf-9700-c15d09dc48cf" alt=""><figcaption></figcaption></figure>

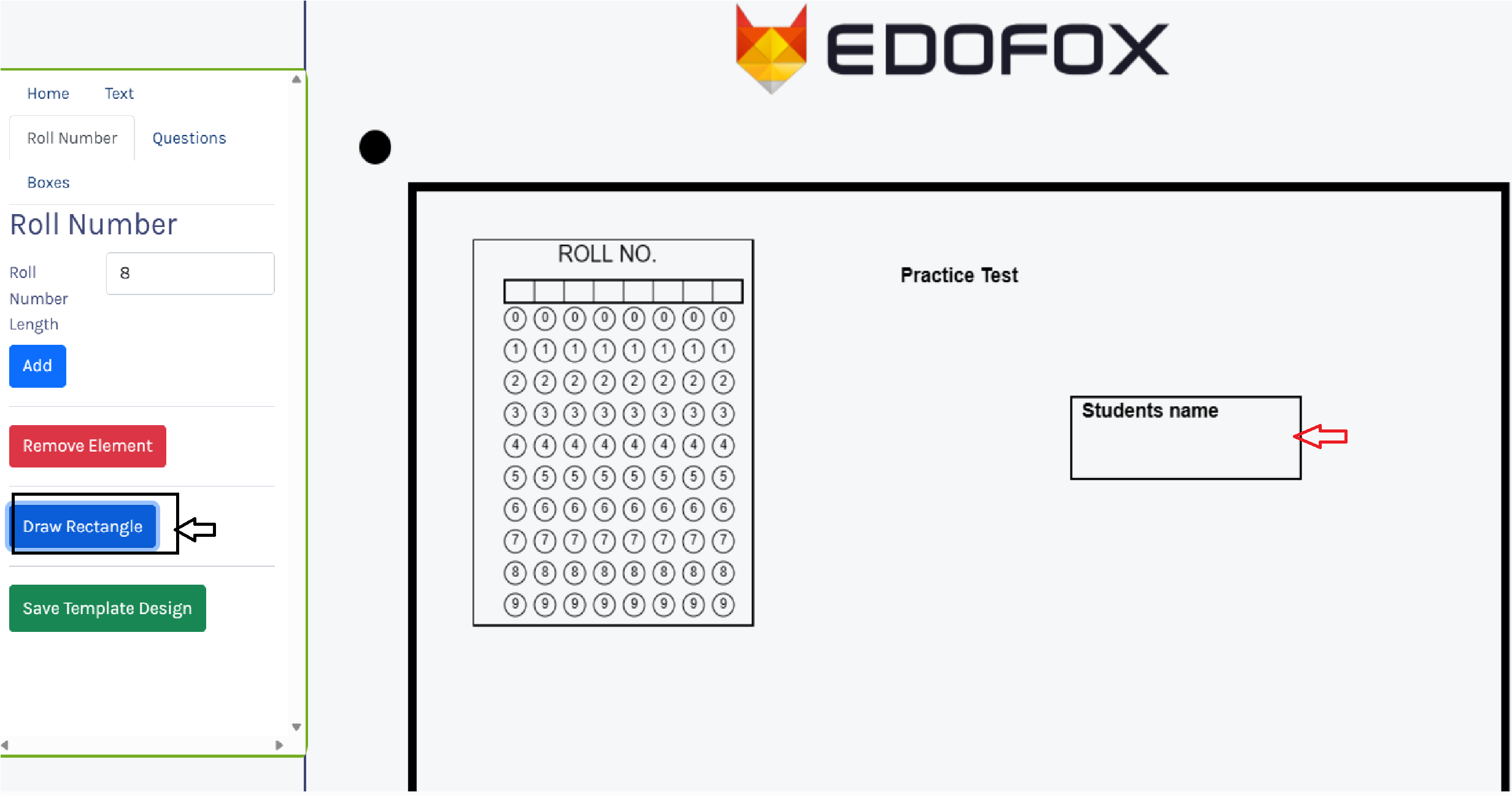

* You can use the 'Draw Rectangle' to include additional elements that you want in the OMR and add text to the block as shown below.

<figure><img src="https://1998472324-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyTrQq9oNUSgQZqrwy4qB%2Fuploads%2FMDsljFKvKpNdKgxzQNoT%2Fimage.png?alt=media&#x26;token=da5b22ba-35b5-4378-b089-710391937e50" alt=""><figcaption></figcaption></figure>

* Click on questions and fill in the following fields as per your requirement-

**Question Type**: Choose the type of question your test will have. i.e., MCQ or Numeric.

**Option Type:** Choose the option format for your OMR i.e., 1234 or ABCD

**Multiple Correct:** Choose whether your questions have multiple correct answers

**Starting Question:** Select the number your questions will start from.

**Total Questions:** Enter the total number of questions&#x20;

**Columns:** Enter the number of columns you want to add to the OMR

Once the required fields are filled, click on 'ADD', You can place the block as per preference.

<figure><img src="https://1998472324-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyTrQq9oNUSgQZqrwy4qB%2Fuploads%2FBq2OKORpRSjHpty9MPGe%2Fimage.png?alt=media&#x26;token=e8f244b5-6898-47e1-9ae2-6d3a9c2ddc68" alt=""><figcaption></figcaption></figure>

* To add Options for Numeric Questions, select the Question Type as Numeric and fill in the following fields-

**Option Type:** Choose the option format for your OMR i.e., 1234 or ABCD

**Multiple Correct:** Choose whether your questions have multiple correct answers

**Starting Question:** Select the number your questions will start from.

**Total Questions:** Enter the total number of questions

**Columns:** Enter the number of columns you want to add to the OMR

**Digits:** Enter the number of Digits your answers will have

**Decimal Digits:** Enter the decimal digits your answers will have

**Add Sign:** Choose whether your numeric answers will have Sign.

Once the fields are filled, click on 'Add'. You can place the block as per preference.

<figure><img src="https://1998472324-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyTrQq9oNUSgQZqrwy4qB%2Fuploads%2FScHUwD0j4pO7mKlFtWUC%2Fimage.png?alt=media&#x26;token=86f0a013-9e2a-40a9-8efd-a3de2e9a4c9d" alt=""><figcaption></figcaption></figure>

* Once your Template design is complete, click on 'Save Template Design'. You will receive a copy of the OMR.

<figure><img src="https://1998472324-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyTrQq9oNUSgQZqrwy4qB%2Fuploads%2FVrPVsFybMXaxySakCJHr%2Fimage.png?alt=media&#x26;token=1f79c594-044d-4ebd-a2c4-5a5388b23fb5" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1998472324-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FyTrQq9oNUSgQZqrwy4qB%2Fuploads%2FEnMfIP0qbzCbiiLqxhsO%2Foutput%20(4).png?alt=media&#x26;token=5ae64b69-80c2-4d7f-99b4-915b626ecebb" alt=""><figcaption></figcaption></figure>
